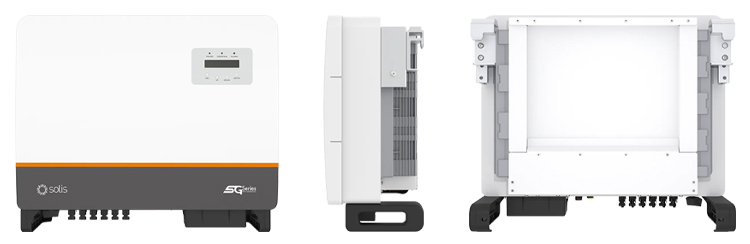

Solis S5-GC 50KW Three phase grid-tied inverter
Product Description
Introducing the Solis S5-GC(25-50)K series, designed for robust performance in residential, small industrial, and commercial PV installations. Available at Comfort Solar, these inverters feature a 3/4 MPPT design for enhanced configuration flexibility and efficiency.
Specification
| DATASHEET | S5-GC(25-50)K |
| Models | 50K-HV |
| Input DC | |
| Recommended max. PV power | 75 kW |
| Max. input voltage | 1100 V |
| Rated voltage | 600 V |
| Start-up voltage | 180 V |
| MPPT voltage range | 200-1000 V |
| Max. input current | 4*32 A |
| Max. short circuit current | 4*40 A |
| MPPT number/Max. input strings number | 4/8 |
| Output AC | |
| Rated output power | 50 kW |
| Max. apparent output power | 55 kVA |
| Max. output power | 55 kW |
| Rated grid voltage | 3/PE, 480 V |
| Rated grid frequency | 50 Hz / 60 Hz |
| Rated grid output current | 60.1 A |
| Max. output current | 66.2 A |
| Power factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDi | <3% |
| Efficiency | |
| Max. efficiency | 98.80% |
| EU efficiency | 98.40% |
| Protection | |
| DC reverse-polarity protection | Yes |
| Short circuit protection | Yes |
| Output over current protection | Yes |
| Surge protection | DC Type II / AC Type II |
| Grid monitoring | Yes |
| Anti-islanding protection | Yes |
| Temperature protection | Yes |
| Strings monitoring | Yes |
| I/V Curve scanning | Yes |
| Integrated AFCI 2.0 | Optional |
| Integrated PID recovery | Optional |
| Integrated DC switch | Yes |
| General Data | |
| Dimensions (W*H*D) | 647*629*252 mm |
| Weight | 42.1 kg |
| Topology | Transformerless |
| Self-consumption (night) | <1 W |
| Operating ambient temperature range | -25 ~ +60°C |
| Relative humidity | 0-100% |
| Ingress protection | IP66 |
| Noise emission (typical) | ≤60 dB(A) |
| Cooling concept | Intelligent redundant fan-cooling |
| Max. operation altitude | 4000 m |
| Grid connection standard | G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530 |
| Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
| Features | |
| DC connection | MC4 connector |
| AC connection | OT terminal |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
Product Display
Solis S5-GC50K 50kW Three-Phase Grid-Tie Inverter + Wi-Fi
Solis S5-GC50K is a powerful three-phase grid-tie inverter designed for commercial and industrial PV systems. With 5 MPPTs and 10 DC inputs, it allows flexible system design across different panel orientations and maximizes energy production.
The inverter offers a peak efficiency of 98.7%, intelligent fan cooling, arc fault protection (AFCI), and advanced grid interaction functions like SVG operation at night. Its IP66 protection and C5 anti-corrosion level make it ideal for harsh environments.
Wi-Fi, GPRS, or PLC communication options enable remote control and real-time monitoring via the SolisCloud platform. It also supports aluminum wiring to reduce installation costs.
