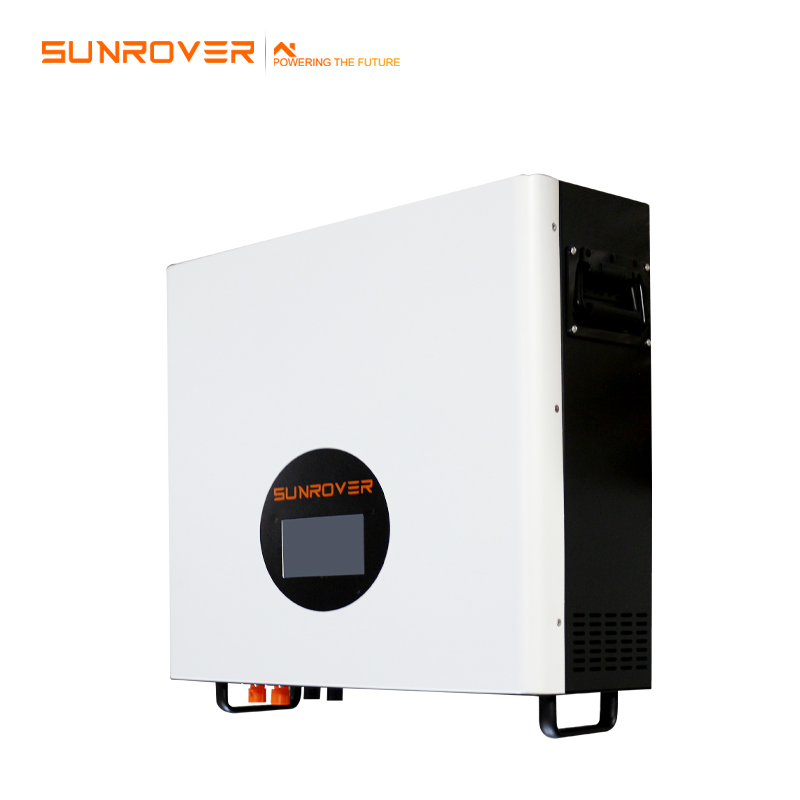

Solar Energy Storage System Battery 51.2V 100ah 5kwh Rechargeable Power
Product Description
Long Cycle Life: With a cycle life of 6000 times (0.2C, 25°C, 80% DOD), this battery ensures reliable and efficient energy storage for extended periods, providing a long-lasting solution for home energy storage needs.
Efficient Performance: This battery boasts an efficiency of >98%, ensuring minimal energy loss during charging and discharging, and maximizing the overall performance of your home energy storage system.

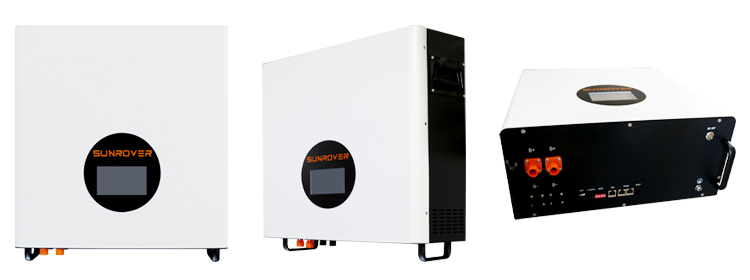

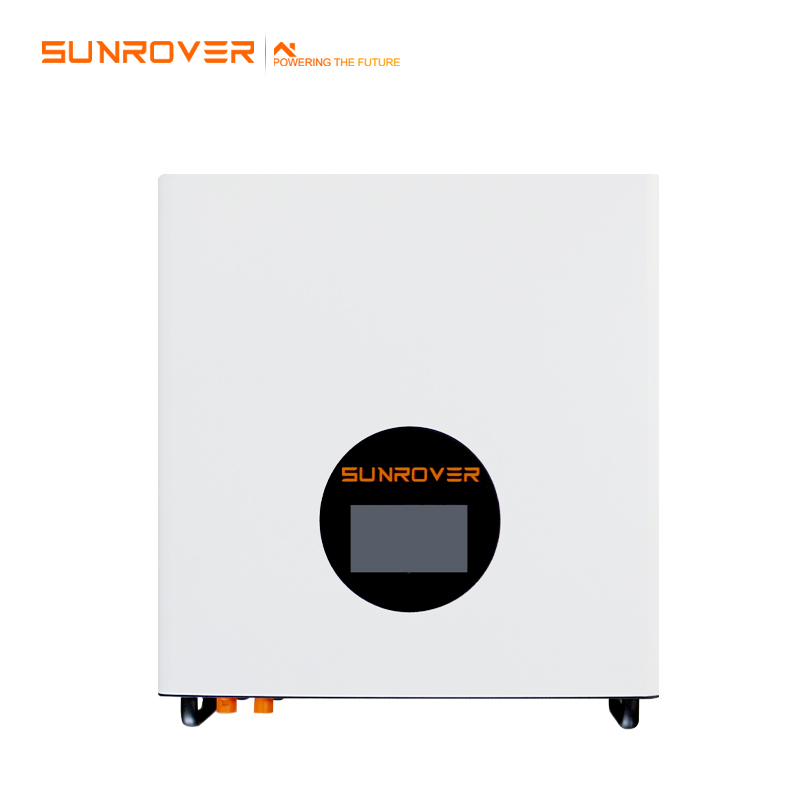

IP65 Lithium Battery Factory 51.2V 100Ah 5kwh Wall Mounted, Grade a Cell EU Quality Stock, Fast Delivery
IP65 Lithium Battery Factory 51.2V 100Ah 5kwh Wall Mounted, Grade a Cell EU Quality Stock, Fast Delivery
Specification
| HZW-100-16S | |
| Model | HZW-100-16S |
| Product | 51.2V100AH |
| Nominal Voltage (V) | 51.2V |
| Nominal Capacity (AH) | 100AH |
| Nominal Capacity (WH) | 5120WH |
| Usable Capacity (WH) | 4608WH |
| Discharge Voltage (V) | 44.8V |
| Charge Voltage (V) | 57.6V |
| Recommend Charge/Discharge Current (A) | 50A |
| Max.Charge/Discharge Current (A) | 100(3S) |
| Communication | RS485/CAN/Bluetooth (Optional) |
| Operation Temperature | 0-40℃ |
| Storage Temperature | -20-70°C |
| Humidity | 15%-80% |
| Dimension | 440x453x206mm |
| Weight | 52.0kg |
| Certification | CE/IEC/UN38.3/MSDS |
| Design Life | 10 years+ |
| Cycle Life | ≥4000@25°C |
| Electrical Design Redundancy | >20% |

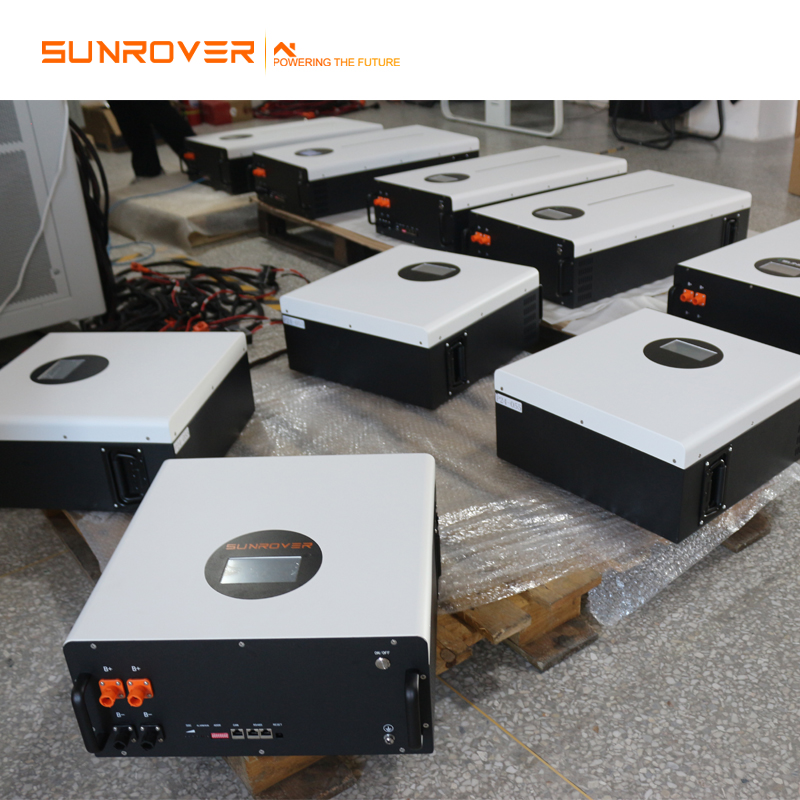

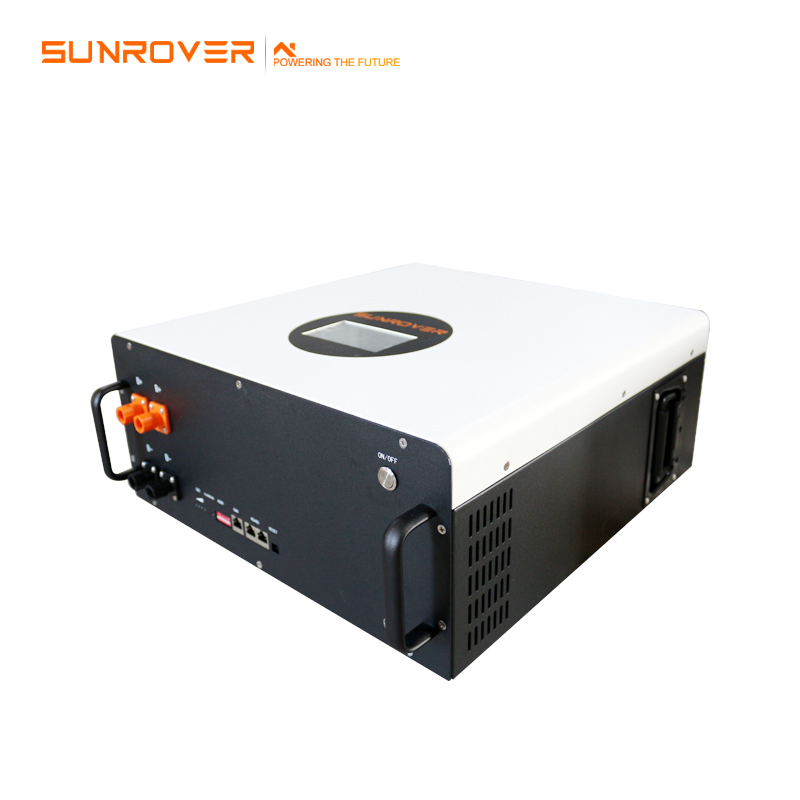

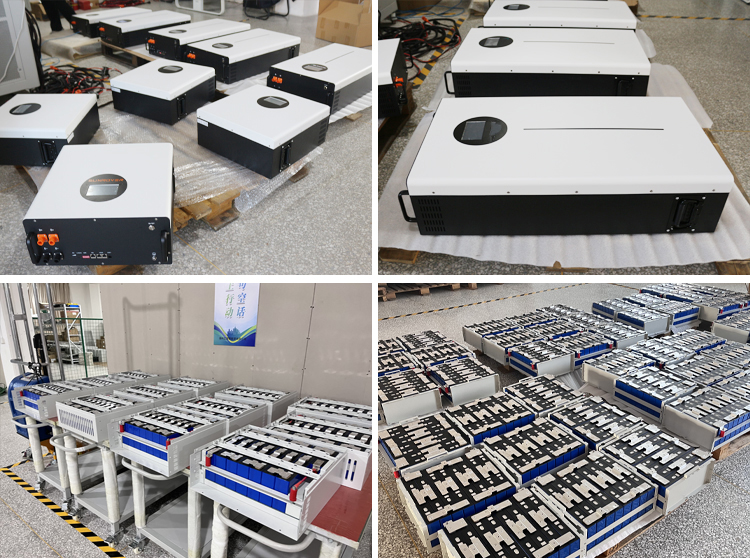

Product Display
Durable Construction: The battery features a robust IP65 protection class, allowing it to withstand harsh environments and ensuring a long lifespan, even in extreme temperatures (-20°C to 60°C for discharging and -10°C to 30°C for storage).

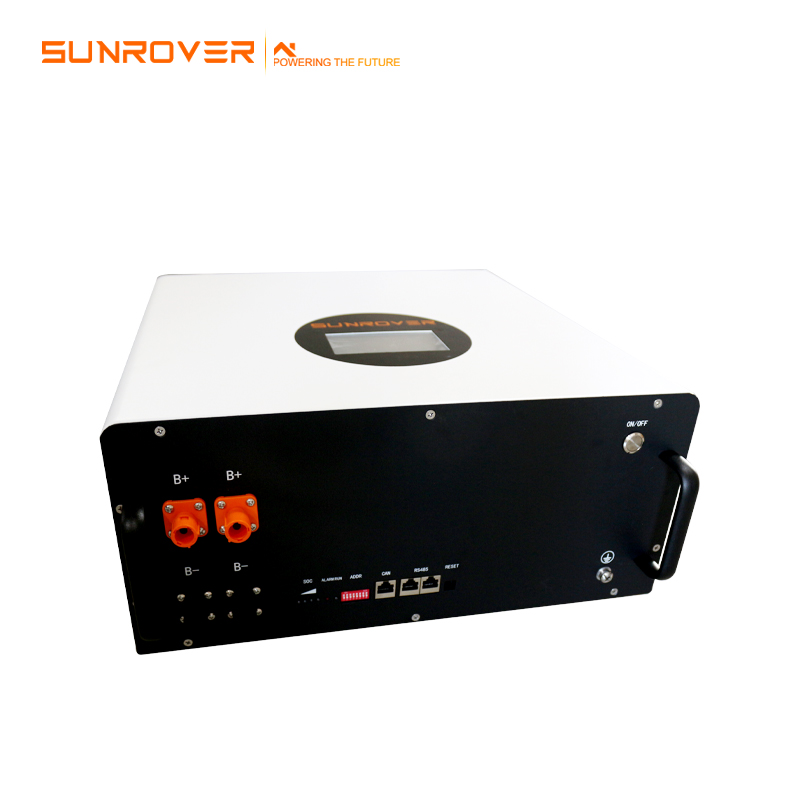

Versatile Connectivity Options: Equipped with RS232, CAN, and RS485 communication ports, this battery offers flexible connectivity options for seamless integration with various home energy storage systems, making it a user-friendly choice for customers who require customization.

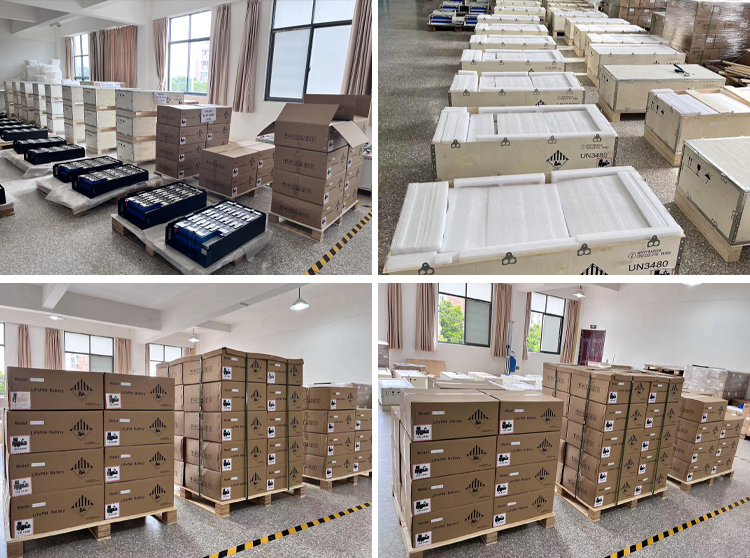

Packing & Delivery
Project Cases
The product utilizes Top grade A cell, designed to last over 10 years;
Modular design, Easy to maintain and operate;
Functions: 1.Over-temperature alarm protection
2.Over-charge and over-discharge protection
3.Short-circuit protection
4.Seamless connection with UPS, photovoltaic power generation and other mainequipment
5.Multiple parallel machines, easy to expand capacity, automatic addressing, no need to dial code
