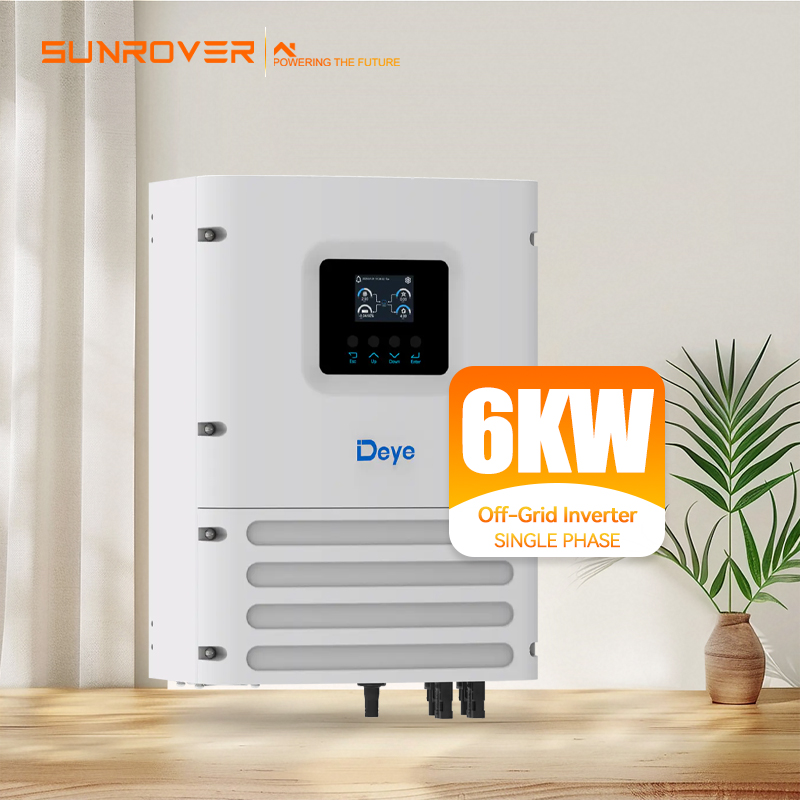

Single Phase Off Grid Inverter SUN-6K-OG01LP1-EU-AM2
Product Description
Colorful touch LCD, lP65 protection degree
AC couple to retrofit existing solar system
Max.16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 135A
Support storing energy from diesel generator
Specification
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 135 |
| Max. Discharging Current (A) | 135 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV Access Power (W) | 12000 |
| Max. PV Input Power (W) | 9600 |
| Max. PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| PV Input Voltage(V) | 125-500 |
| MPPT Voltage Range(V) | 150-425 |
| Full Load MPPT Voltage Range(V) | 300-425 |
| Rated PV Input Voltage (V) | 370 |
| Max. Operating PV Input Current (A) | 18+18 |
| Max. Input Short-Circuit Current (A) | 27+27 |
| No. of MPP Trackers/No. of Strings MPP Tracker | 2/1+1 |
| Max. Inverter Backfeed Current to The Array(A) | 0 |
| AC Output Data | |
| Rated AC Output Power (VA/W) | 6000 |
| Max. AC Output Power (VA/W) | 6000 |
| Max. AC Output Current (A) | 26.1 |
| Peak Power (W) | 2 times of rated power, 10s |
| Rated Output Voltage (V) | 230 |
| Output Type | L+N+PE |
| Rated Output Frequency | 50Hz / 60Hz |
| Output Voltage Waveform | Pure Sine Wave |
| Total Current Harmonic Distortion THDi | ＜3% |
| AC Input Date(Grid and Generator) | |
| Max. Input Power to Battery (W) | 6000 |
| Rated Input Voltage (V) | 230 |
| Rated Input Frequency | 50Hz / 60Hz |
| Gird Input Current (A) | 35 |
| Generator Input Current (A) | 35 |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | >99% |
| Equipment Protection | |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection,AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,Arc Fault Circuit Interrupter (optional), Insulation Impedance Detection, DC Switch |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| Interface | |
| LCD/LED Display | LCD |
| Communication Interface | WIFI/RS485/CAN/Bluetooth |
| General Data | |
| Max. Operating Frequency(Hz) | 200M |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Noise (dB) | <55 |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 306×427.5×175.77 (Excluding Connectors and Brackets) |
| Weight (kg) | 12.65 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | Standard 5years, extended warranty |
| Safety / EMC Standard | IEC62109-1/-2, EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4 |

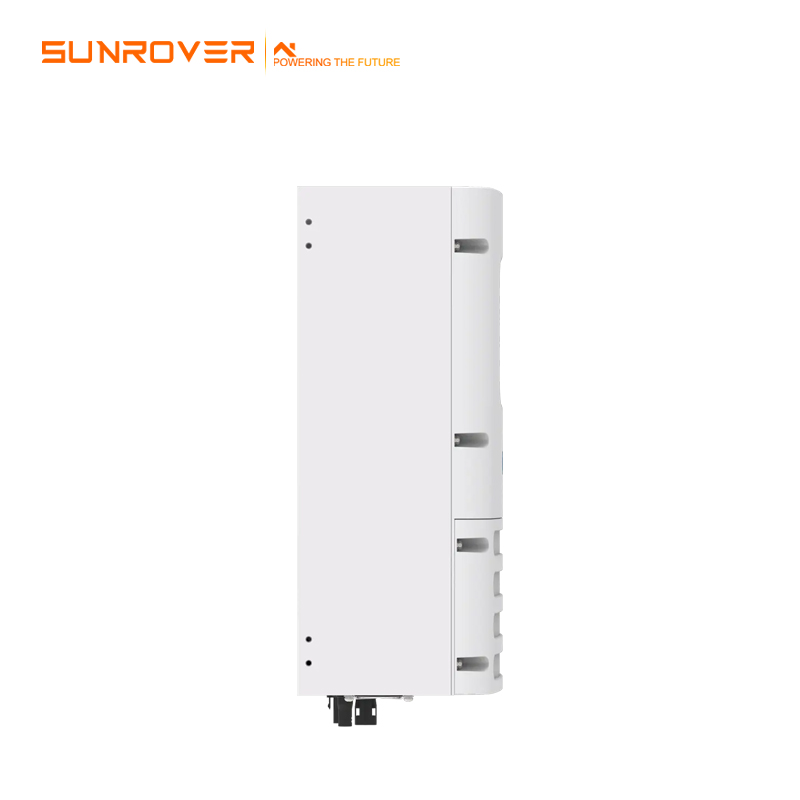

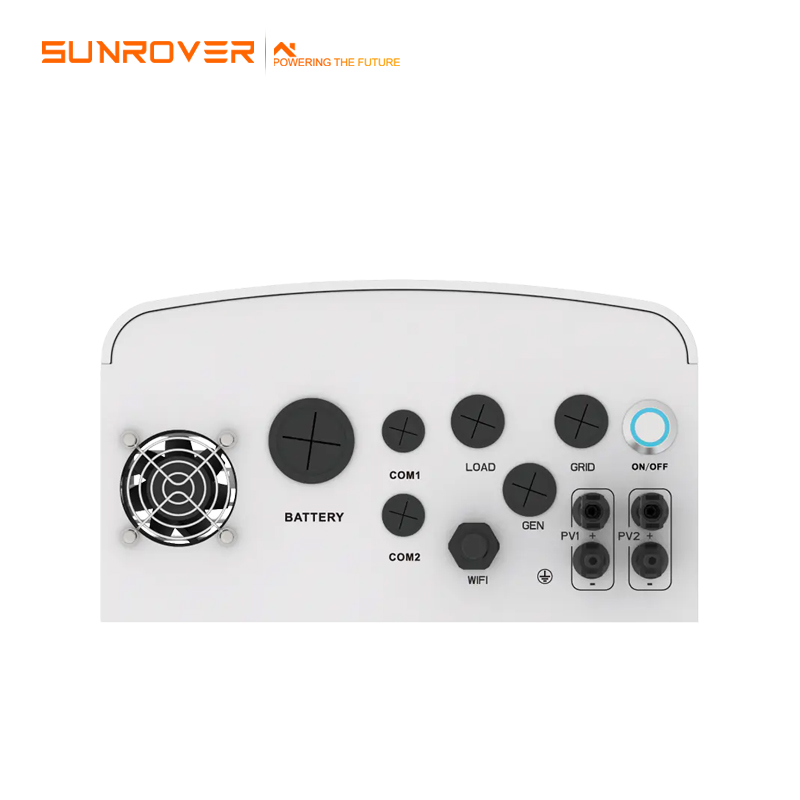

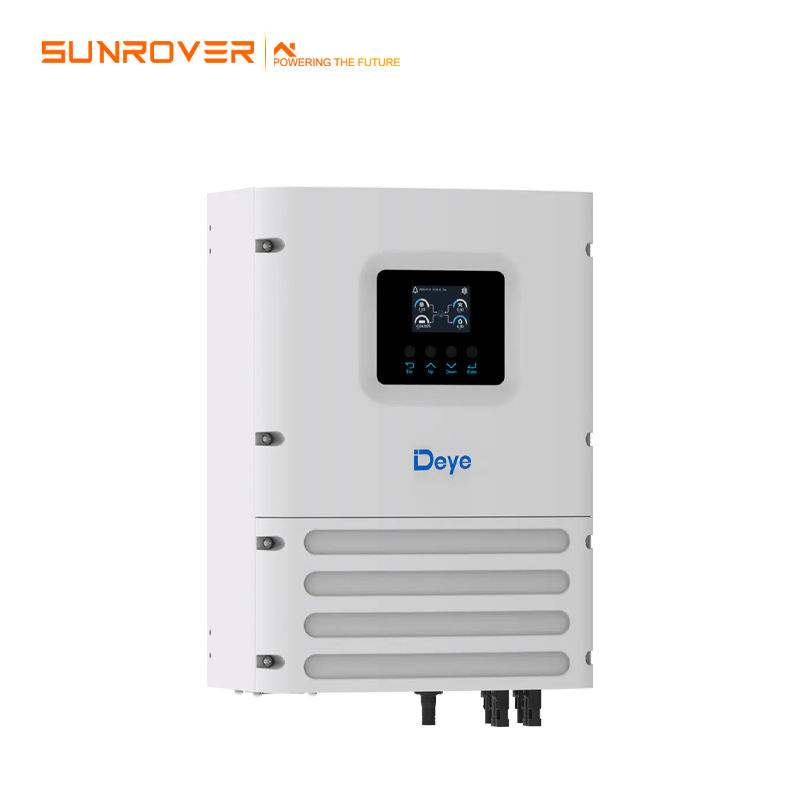

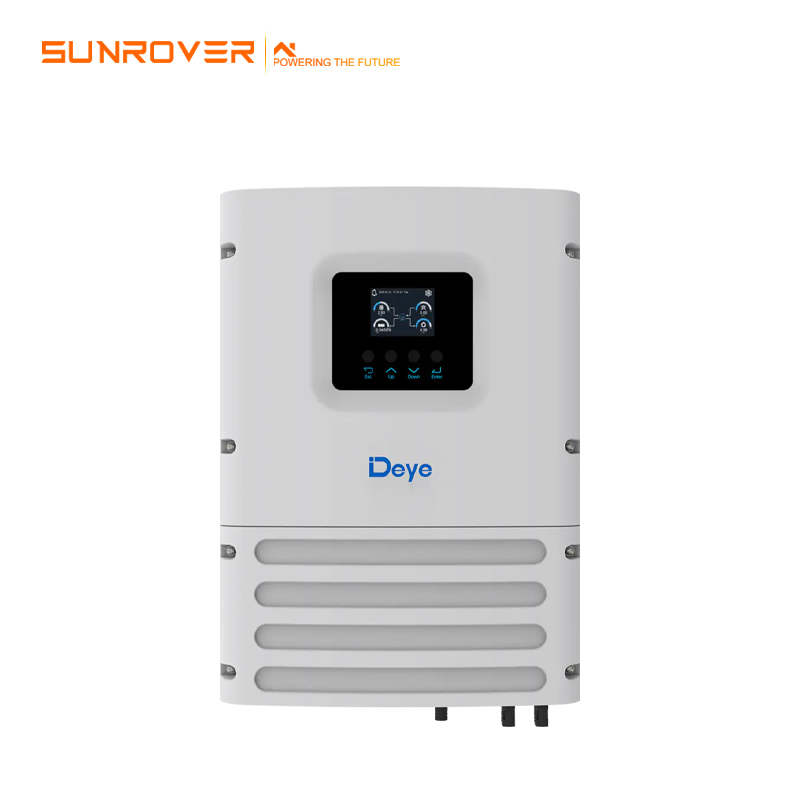

Product Display
Considering the following points before selecting where to install:
A· Please select a vertical wall with load-bearing capacity for installation, suitable for installation on concrete or other non-flammable surfaces,installation is shown below.
B · Install this inverter at eye level in order to allow the LCD display to be read at all times.
C · The ambient temperature is recommeded to be between -40~60℃ to ensure optimal operation.
D· Be sure to keep other objects and surfaces as shown in the diagram to guarantee sufficient heat dissipation and have enough space for removing wires.
Mounting the inverter
Remember that this inverter is heavy! Please be careful when lifting out from the package. Choose the recommend drill head to drill 4 holes on the wall, 82-90mm deep.
1. Use a proper hammer to fit the expansion bolt into the holes.
2. Carry the inverter and holding it, make sure the hanger aim at the expansion bolt,fix the inverter on the wall.
3. Fasten the screw head of the expansion bolt to finish the mounting.

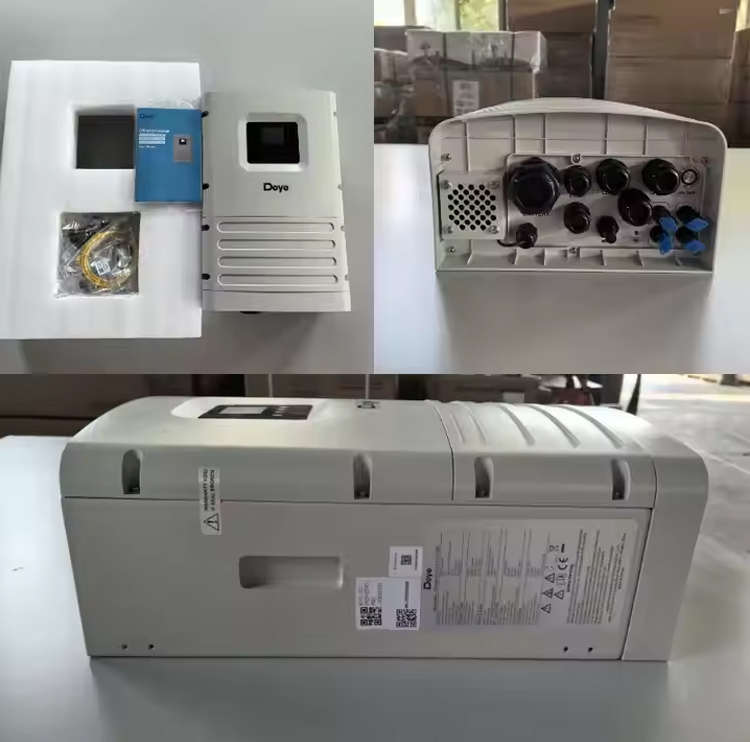

Packing & Delivery

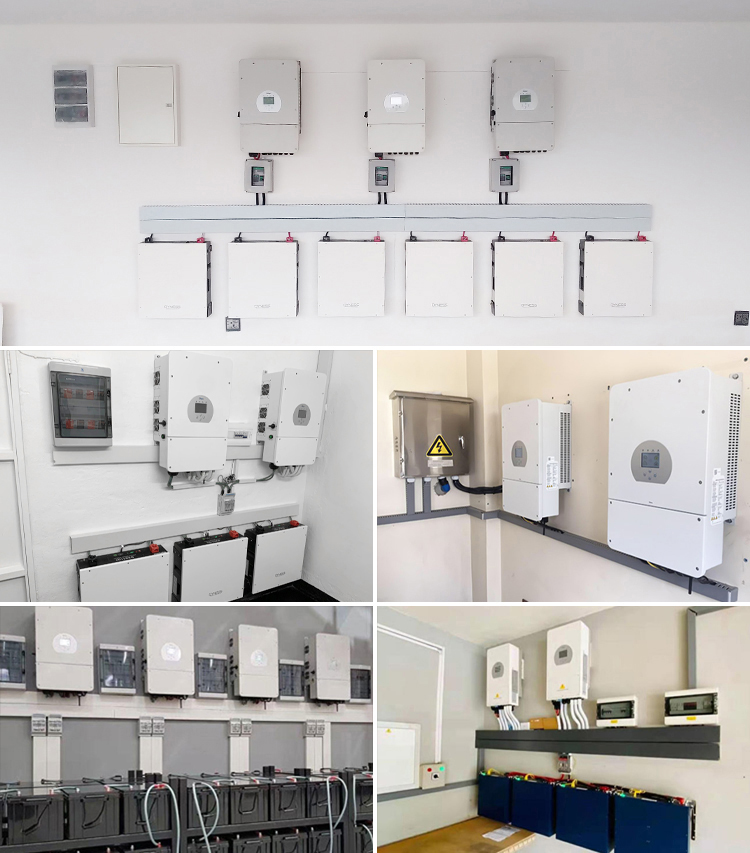

Project Cases
