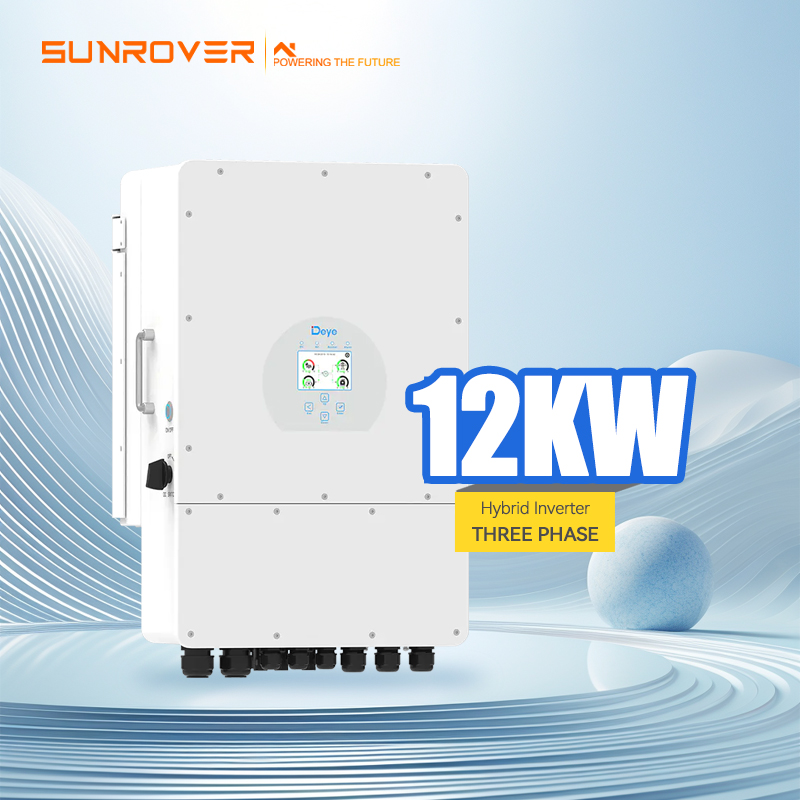

Deye Hybrid Three Phase Inverter SUN-12K-SG04LP3-EU
Product Description
The inverter is suitable for residential use, maximizing the self-consumption rate of solar energy and increasing energy impedance. During the day, the PV system generates electricity that will initially be supplied to loads. The excess energy will then charge the battery or be delivered to the grid. The inverter meets the standard EN50549-1, which means it can be successfully used to become prosumer. The battery can also be charged by the diesel generator to ensure uninterrupted power supply in the event of a grid outage. It is equipped with RS485/CAN port for battery communication.
Specification
| Model | SUN-12K-SG04LP3-EU |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 240 |
| Max. Discharging Current (A) | 240 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV Access Power (W) | 24000 |
| Max. PV Input Power (W) | 18000 |
| Max. PV Input Voltage (V) | 800 |
| Start-up Voltage (V) | 160 |
| MPPT Voltage Range (V) | 200-650 |
| Rated PV Input Voltage (V) | 550 |
| Max. Operating PV Input Current (A) | 26+13 |
| Max. Input Short-Circuit Current (A) | 34+17 |
| No. of MPP Trackers/ No. of Strings MPP Tracker |
2/2+1 |
| AC Input/Output Data | |
| Rated AC Input/Output Active Power (W) | 12000 |
| Max. AC Input/Output Apparent Power (VA) | 13200 |
| Rated AC Input/Output Current (A) | 18.2/17.4 |
| Max. AC Input/Output Current (A) | 20/19.1 |
| Max. Continuous AC Passthrough (grid to load) (A) | 45 |
| Peak Power (off-grid) (W) | 2 times of rated power, 10s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
| Grid Connection Form | 3L+N+PE |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC Injection Current | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | >99% |
| Equipment Protection | |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/RS232/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise (dB) | ≤55 |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |

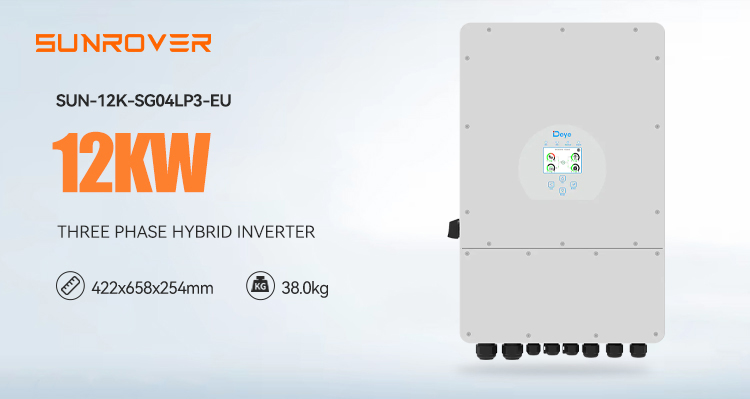

| Cabinet Size (WxHxD mm) | 422×658×254 (Excluding Connectors and Brackets) |
| Weight (kg) | 38 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 |
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |

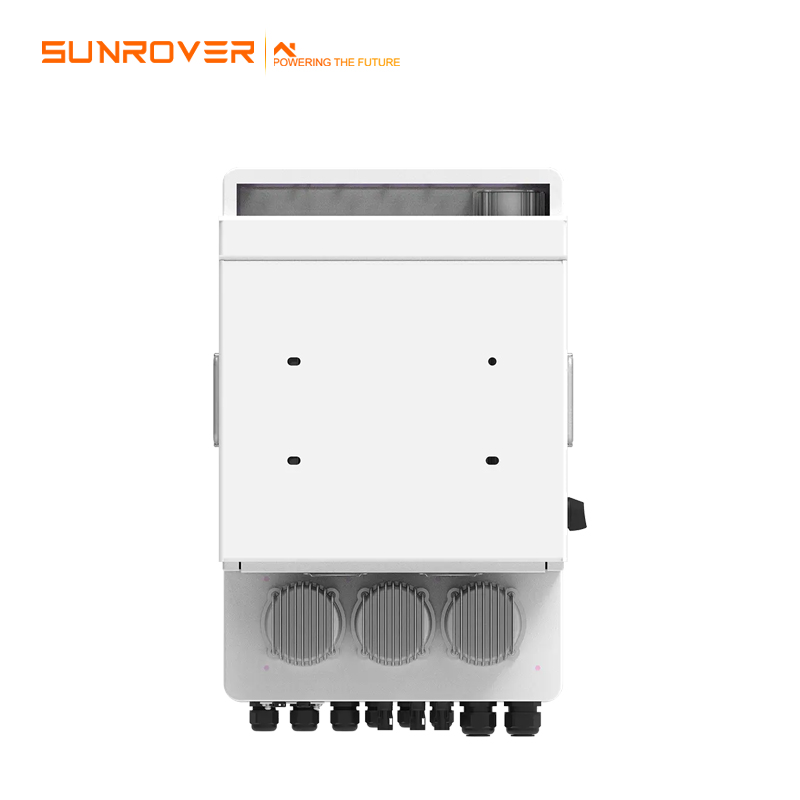

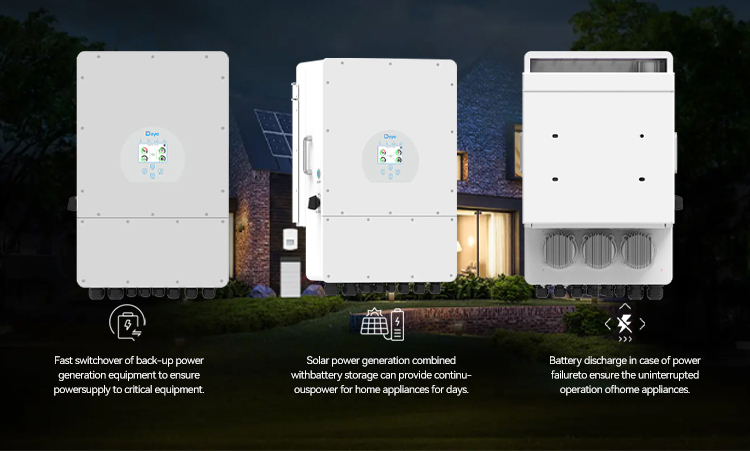

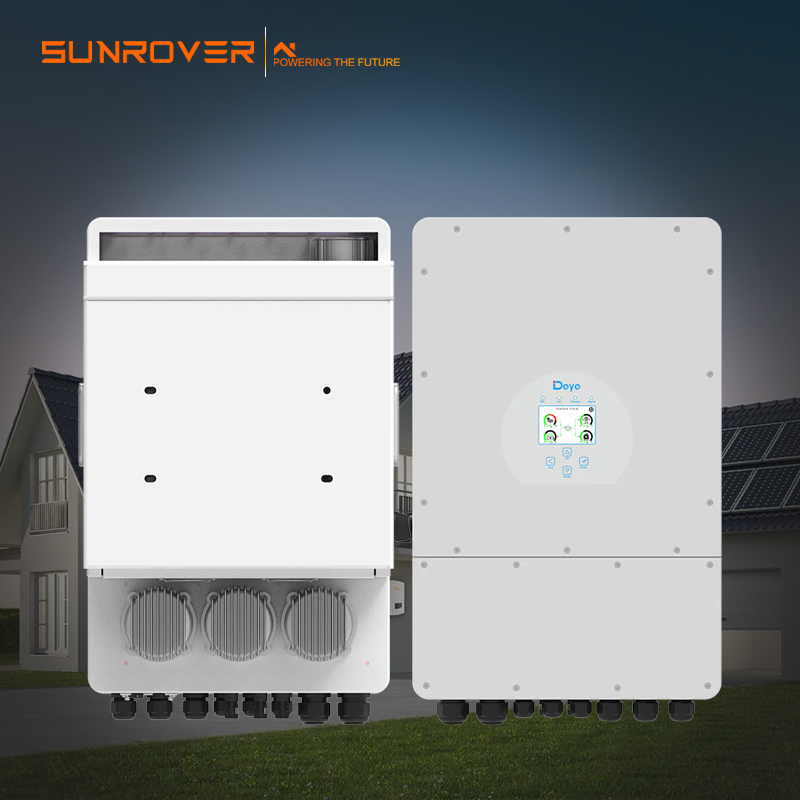

Product Display
The Deye SUN-12K-SG04LP3-EU series of hybrid three-phase inverters is designed for advanced photovoltaic installations. Equipped with sophisticated energy management features and the ability to operate in both on-grid and off-grid modes, these inverters provide reliability and flexibility tailored to the needs of industrial users and households.
Key Features of Deye SUN-12K-SG04LP3-EU Inverters:
Unbalanced Power Support – 100% unbalanced power for each phase, with a maximum output power of up to 50% of the nominal capacity ensuring stable and efficient operation.
Flexible Connections – Capability to connect to both DC and AC power enables the upgrading of existing solar systems.
Multiple Battery Support – Up to 16 batteries in parallel provide significant scalability and reliability for energy storage.
Maximum Charging/Discharging Current of 240A – High energy efficiency during the charging and discharging processes of batteries.
48V Low-Voltage Battery – Transformer insulation enhances safety and reliability of the system operation.
6 Charging/Discharging Periods – Flexible energy management adapted to various user needs.
Support for Energy Storage from Diesel Generators – Increases energy independence and allows integration with emergency power systems.

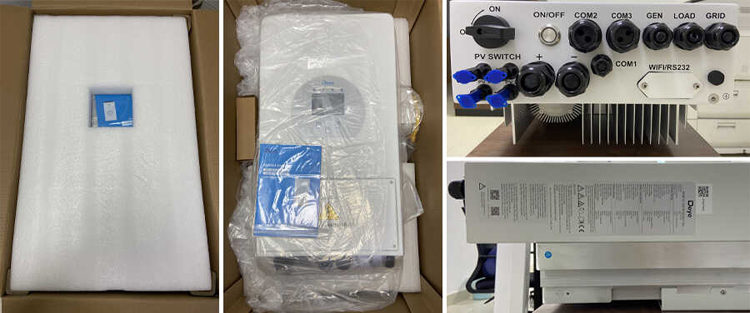

Packing & Delivery

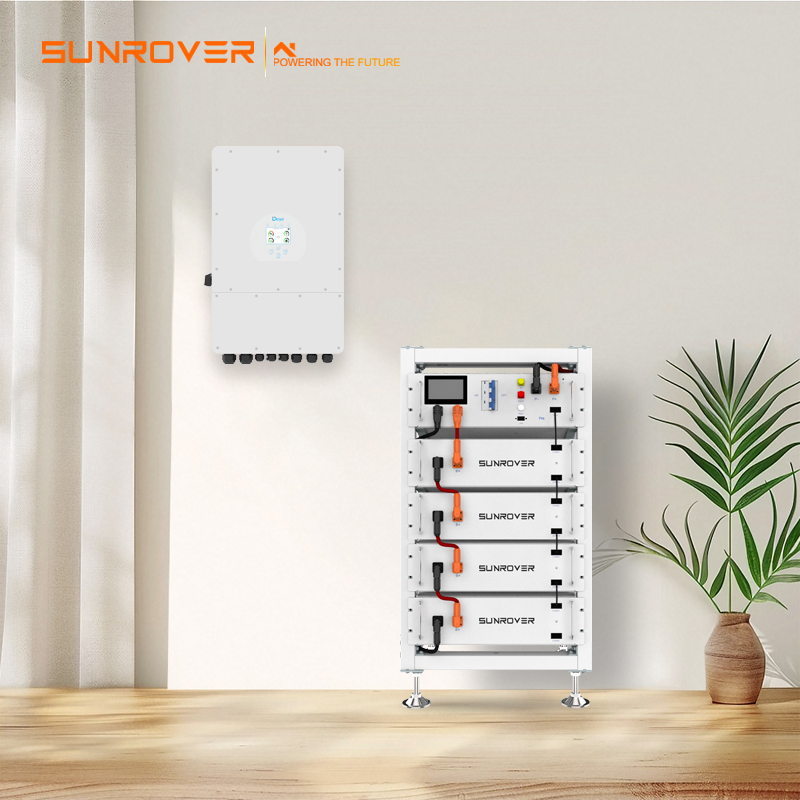

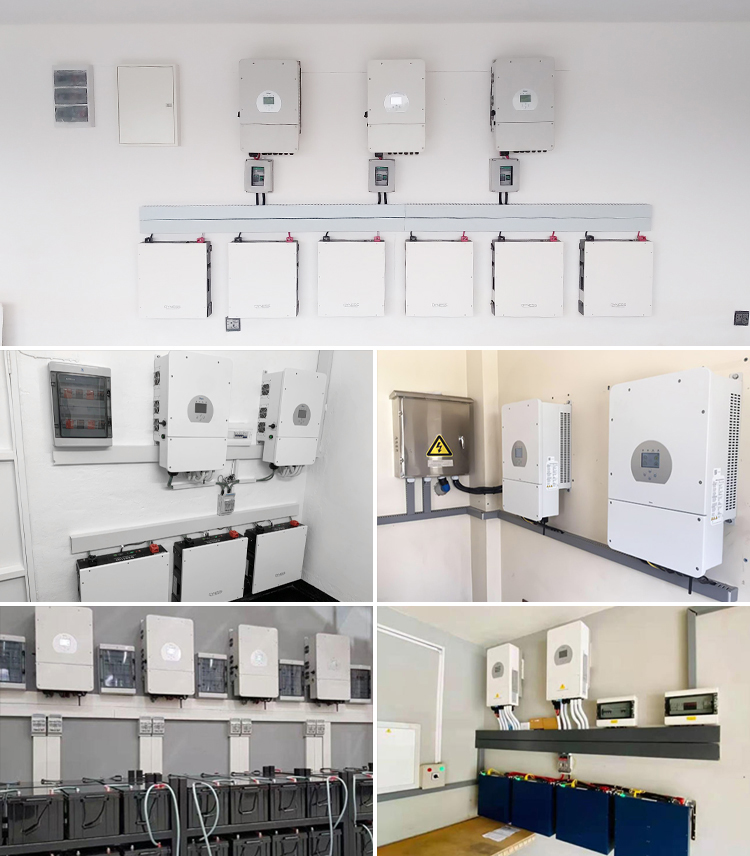

Project Cases

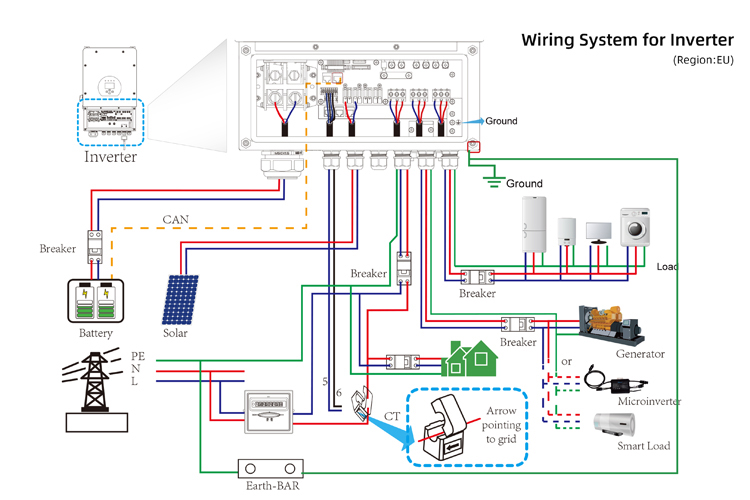

The 12kW Deye SUN-12K-SG04LP3-EU hybrid inverter is a three-phase, low-voltage (48V) hybrid inverter that enhances energy independence and optimizes the direction of energy flow and the sources or loads to which the energy is directed. With its compact design and high power density, this series supports a DC/AC ratio of 1.3, helping reduce investment in the device. It supports unbalanced three-phase output, expanding application scenarios. Equipped with CAN port (x2) for BMS and parallel use, x1 RS485 port for BMS, x1 RS232 port for remote control, and x1 DRM port, making the system smart and flexible. This series supports both single-phase and three-phase parallel applications, allowing up to 16 units to be connected. Thanks to the intelligent monitoring platform, Deye full series inverters support remote shutdown immediately upon failure detection.
