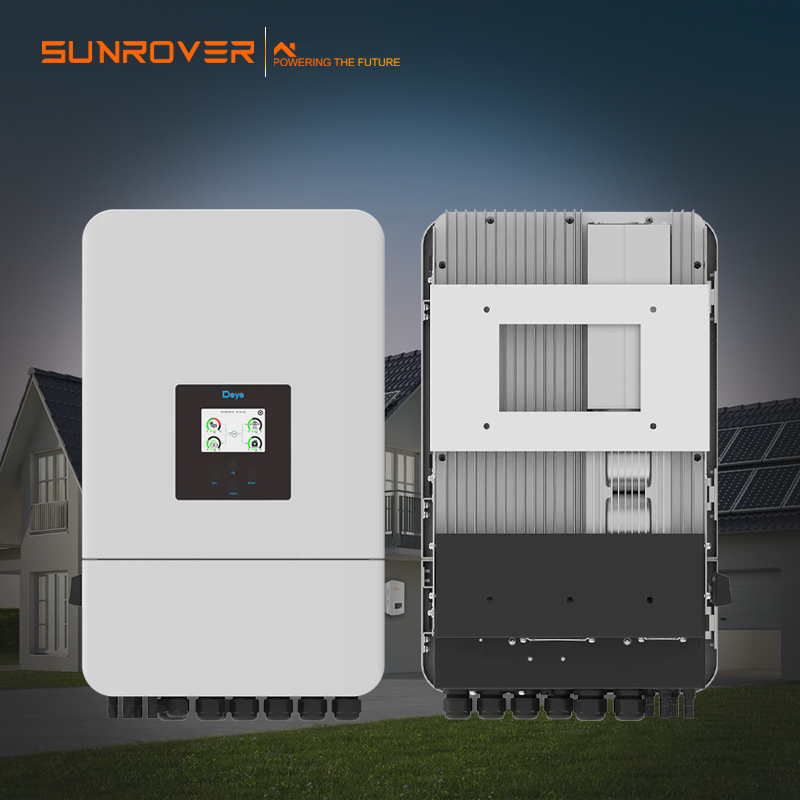

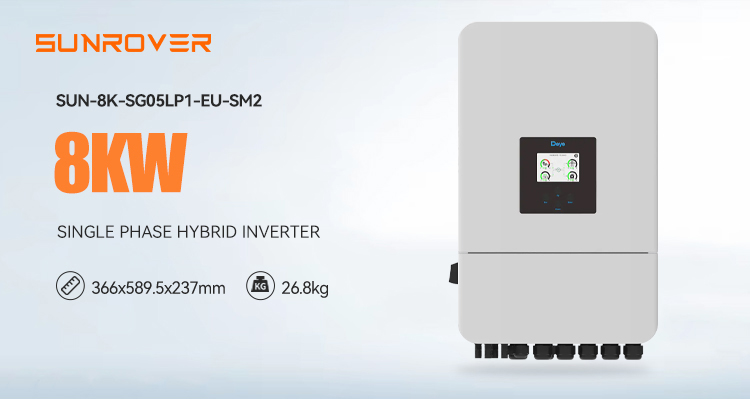

DEYE HYBRID ON-OFF GRID MINI SG05LP1 8KW 48V 2MPPT
Product Description

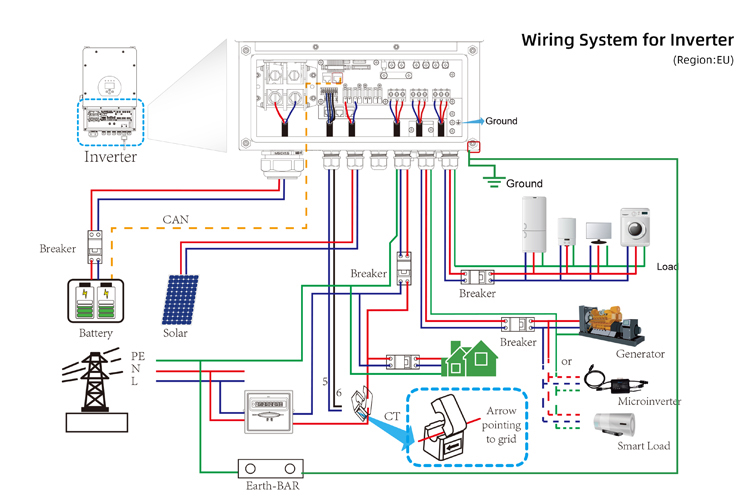

SUN-8K-SG05LP1-EU-SM2, hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It is equipped with RS485/CAN port for battery communication.
Specification
| Model | SUN-8K-SG05LP1 -EU-SM2 |
| Battery Input Data | |
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 190 |
| Max. Discharging Current (A) | 190 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| PV String Input Data | |
| Max. PV Access Power (W) | 16000 |
| Max. PV Input Power (W) | 12800 |
| Max. PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max. Operating PV Input Current (A) | 26+26 |
| Max. Input Short-Circuit Current (A) | 34+34 |
| No. of MPP Trackers/ No. of Strings MPP Tracker |
2/2+2 |
| AC Input/Output Data | |
| Rated AC Input/Output Active Power (W) | 8000 |
| Max. AC Input/Output Apparent Power (VA) | 8800 |
| Rated AC Input/Output Current (A) | 36.4/34.8 |
| Max. AC Input/Output Current (A) | 40/38.3 |
| Max. Continuous AC Passthrough (grid to load) (A) | 50 |
| Peak Power (off-grid) (W) | 2 times of rated power, 10s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 220/230 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
| Grid Connection Form | L+N+PE |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC Injection Current | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 96.50% |
| MPPT Efficiency | >99% |
| Equipment Protection | |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/RS232/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise (dB) | <30 |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |
| Cabinet Size (WxHxD mm) | 366×589.5×237 (Excluding Connectors and Brackets) |
| Weight (kg) | 26.8 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |

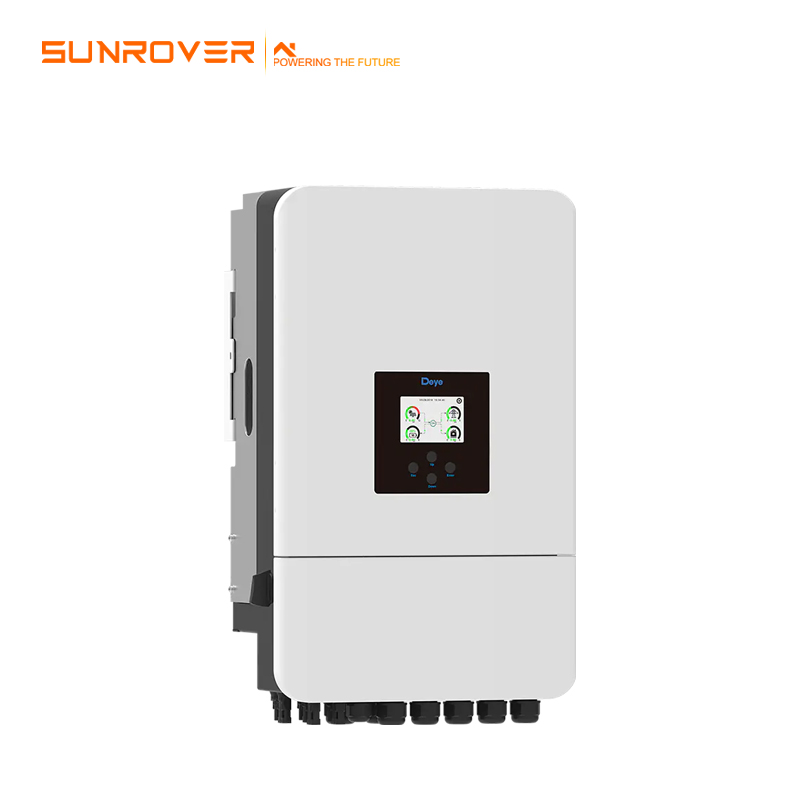

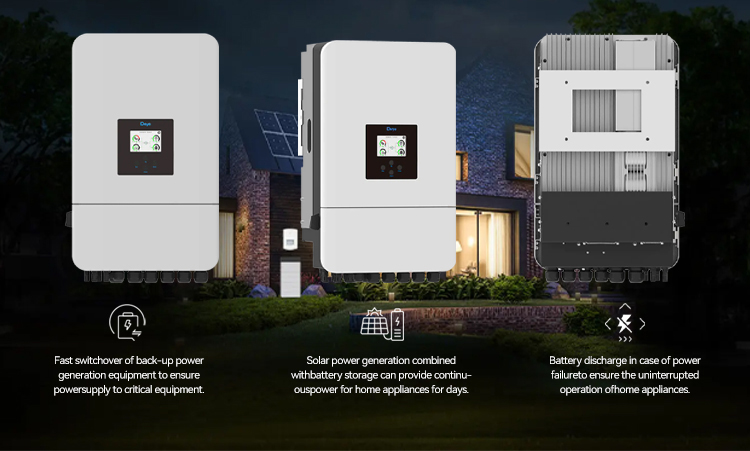

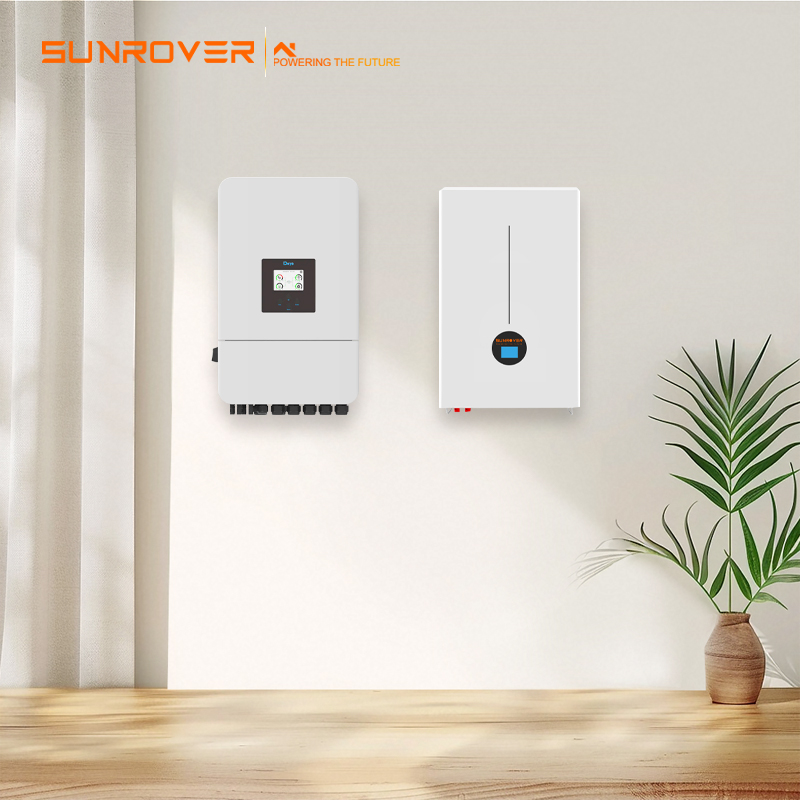

Product Display
Deye Hybrid Inverters have Some Extra Feature mentioned below.
1、Deye hybrid inverter can run lithium as well as lead acid battery.
2、Deye hybrid inverters 140 A to 250 A Max. charging and discharging current
3、It can be compatible with wind mill as well
4、Deye hybrid inverters can be overload up to 30% to 50%
5、Deye hybrid inverters have online monitoring features which can help you to change the setting, Software and FW update, change in technical parameters etc remotely.. So it will reduce the O&M to EPC's
6、Deye hybrid inverter can be shut down remotely
7、Deye hybrid inverters has Colorful touch LCD, IP65 protection degree
8、Deye Hybrid Inverters has DC couple and AC couple to retrofit existing solar system
9、Deye Hybrid Inverters can be Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
10、Deye Hybrid inverters has unique feature, it will take only 4ms to transfer from On grid to to off grid mode.
Packing & Delivery

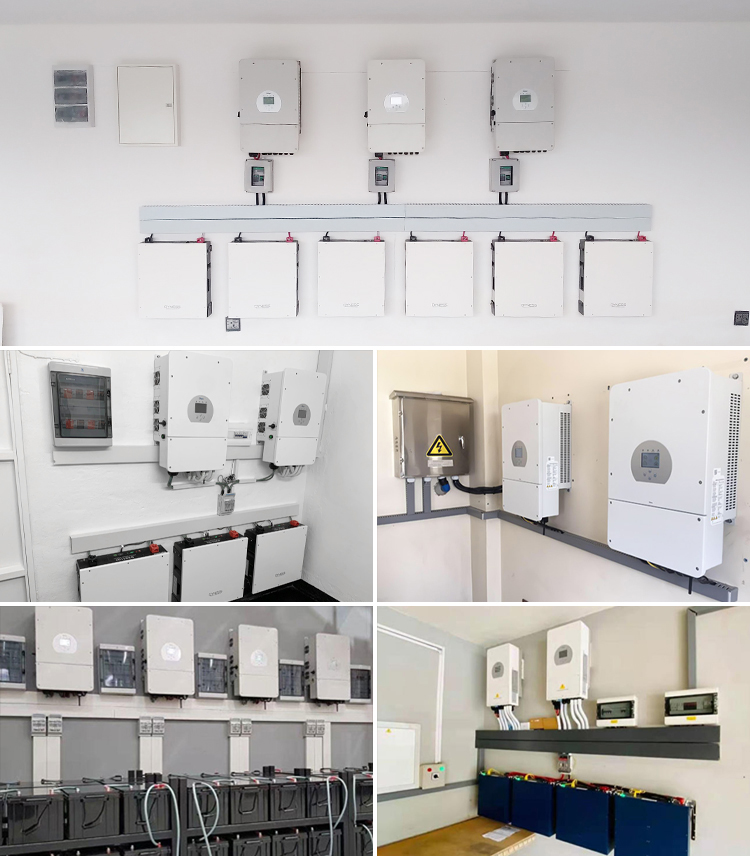

Project Cases
The DEYE 8kW SG05 inverter is a reliable and versatile solution for managing energy systems based on solar panels. This model combines high efficiency, advanced technology and the capabilities of hybrid use with network connection or autonomous operation. Thanks to WiFi monitoring and compatibility with single-phase systems, this device will be an ideal choice for residential and commercial facilities.
