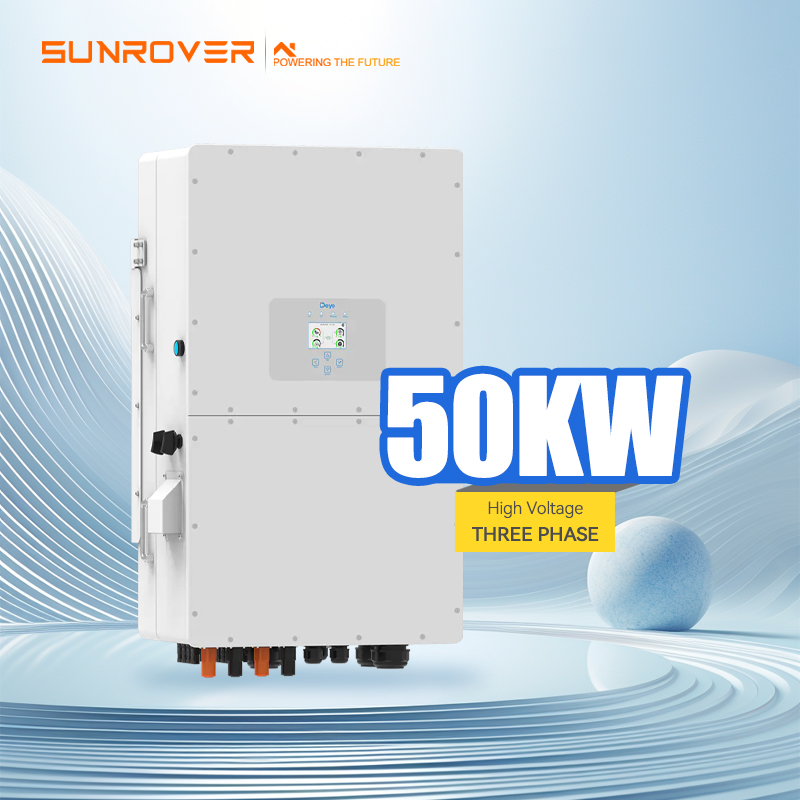

50kW 3 Phase Deye Industrial Commercial Hybrid Solar Inverter
Product Description

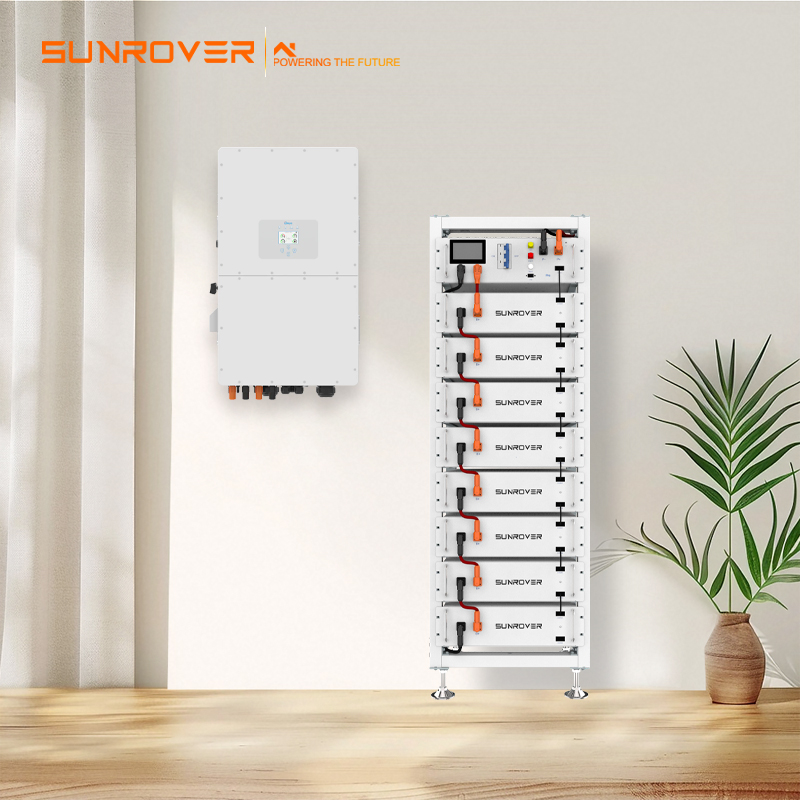

Battery compatible with investor Deye Hybrid SUN-50K-SG01HP3-EU-BM4
This three-phase hybrid investor Deye it supports high-voltage lithium batteries to store the surpluses of solar panels, take advantage of the accumulated energy in nighttimes and thus maximize the savings on the electricity bill.
Hybrid Investors Deye they represent a smart load function or back up function that in addition to allowing to operate in isolation only with the battery also helps to maximize the performance of the installation, allowing to combine, solar panels, batteries and power grid avoiding to the maximum the energy taken from the network and pouring surplus to the network only when the batteries are loaded and there are no consumptions in the house.
Specification
| Model | SUN-50K-SG01HP3-EU-BM4 |
| Battery Input Data | |
| Battery Type | Lithium-ion |
| Battery Voltage Range (V) | 160-800 |
| Max. Charging Current (A) | 50+50 |
| Max. Discharging Current (A) | 50+50 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 2 |
| PV String Input Data | |
| Max. PV Access Power (W) | 100000 |
| Max. PV Input Power (W) | 80000 |
| Max. PV Input Voltage (V) | 1000 |
| Start-up Voltage (V) | 180 |
| MPPT Voltage Range (V) | 150-850 |
| Rated PV Input Voltage (V) | 600 |
| Max. Operating PV Input Current (A) | 36+36+36+36 |
| Max. Input Short-Circuit Current (A) | 55+55+55+55 |
| No. of MPP Trackers/ No. of Strings MPP Tracker |
4/2+2+2+2 |
| AC Input/Output Data | |
| Rated AC Input/Output Active Power (W) | 50000 |
| Max. AC Input/Output Apparent Power (VA) | 55000 |
| Rated AC Input/Output Current (A) | 75.8/72.5 |
| Max. AC Input/Output Current (A) | 83.4/79.8 |
| Max. Continuous AC Passthrough (grid to load) (A) | 200 |
| Peak Power (off-grid) (W) | 1.5 times of rated power, 10s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range(Hz) | 50/45-55, 60/55-65 |
| Grid Connection Form | 3L+N+PE |
| Total Current Harmonic Distortion THDi | <3% (of nominal power) |
| DC Injection Current | <0.5% In |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | >99% |
| Equipment Protection | |
| Integrated | DC Reverse Polarity Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Arc Fault Circuit Interrupter (optional), Anti-islanding Protection, DC Switch, Insulation Impedance Detection, Residual Current Detection |
| Surge Protection Level | TYPE II(DC), TYPE II(AC) |
| Interface | |
| Communication Interface | RS485/RS232/CAN |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN(optional) |
| General Data | |
| Operating Temperature Range (℃) | -40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise (dB) | ≤65 |
| Ingress Protection(IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II(DC), OVC III(AC) |

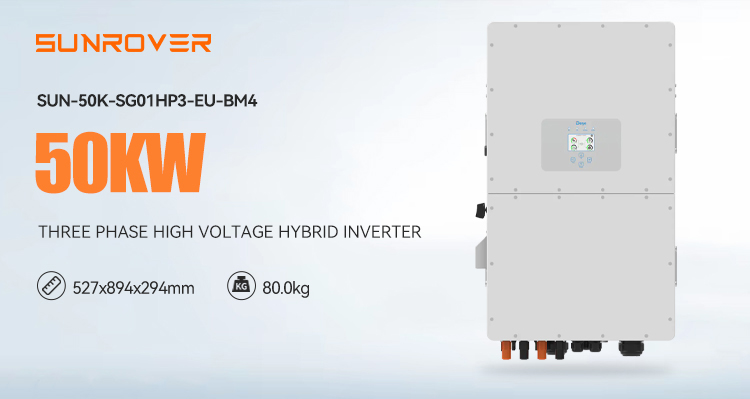

| Cabinet Size (WxHxD mm) | 527×894×294 (Excluding Connectors and Brackets) |
| Weight (kg) | 80 |
| Type of Cooling | Intelligent Air Cooling |
| Warranty | 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 |
| Safety / EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |

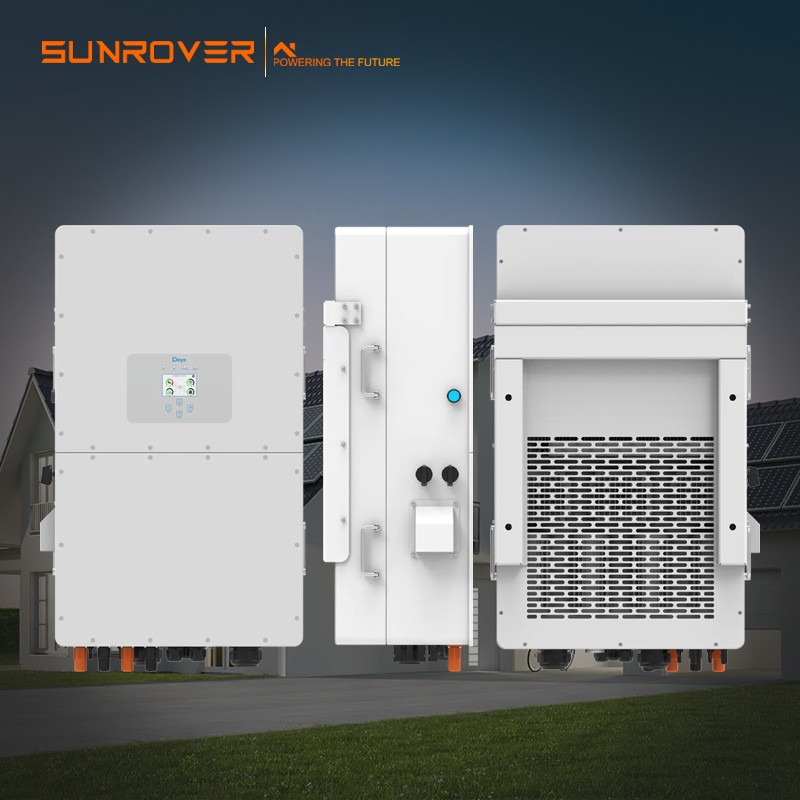

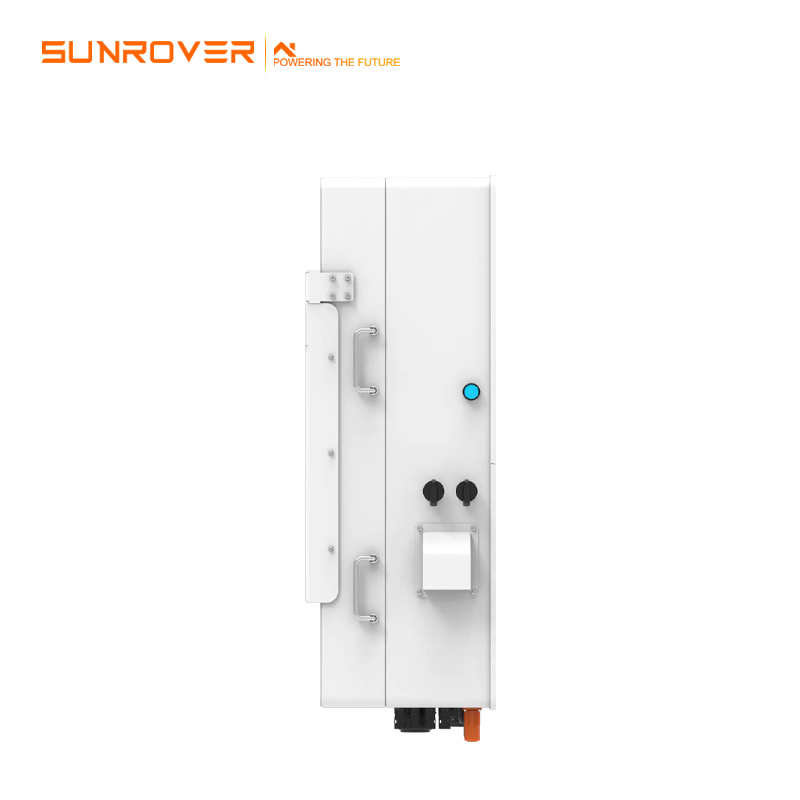

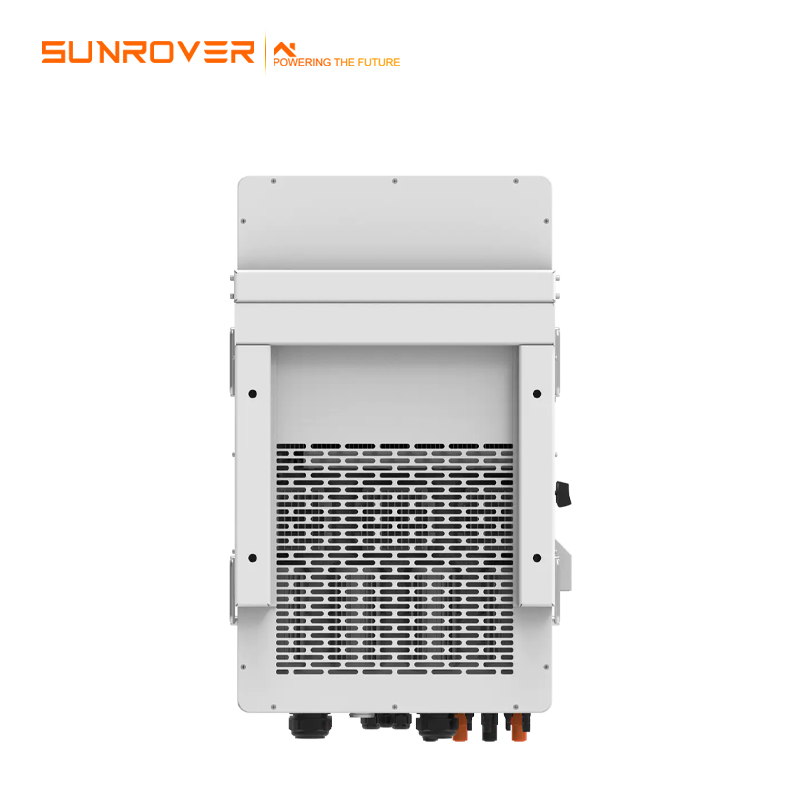

Product Display
Key Features of Deye SUN-50 K-SG01HP3-EU-BM4 Inverters:
Active Phase Asymmetry Balancing – allows handling up to 50% of the rated power on each phase, ensuring system stability.

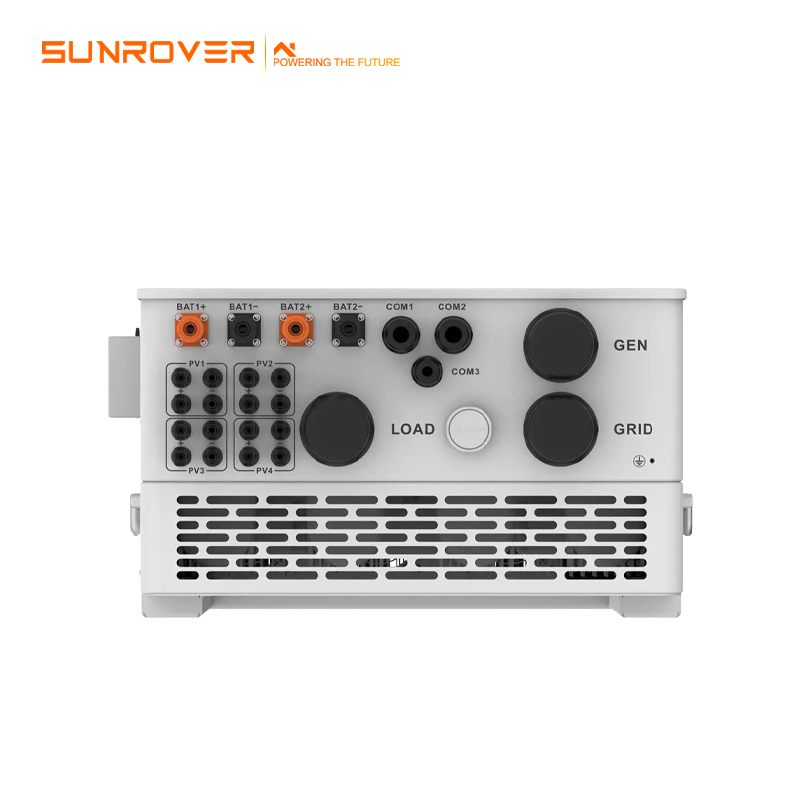

Universal DC and AC Sockets – tailored to European installation standards, simplifying the installation and integration process.
Support for Parallel Systems – capability to connect up to 10 devices for increased installation scalability.
Maximum Charging and Discharging Current of 100A – high efficiency in energy storage processes.
High Voltage Batteries – provide better energy efficiency and greater reliability.
6 Charging and Discharging Time Slots – flexible energy management tailored to individual user needs.
Support for Diesel Generators with AUTO-START Function – allows energy storage in backup power systems.
Who is this a good choice for?
The three-phase hybrid inverters Deye SUN-50K-SG01HP3-EU-BM4 are an ideal choice for large commercial, industrial, and residential installations that require flexible energy management. With advanced features and reliability, they perform exceptionally well in high energy demand setups.
Packing & Delivery
Project Cases
50kW 4 MPPT Deye SUN-50K-SG01HP3-EU-BM4
Deye SUN-50K-SG01HP3-EU-BM4 hybrid PV inverter is suitable for residential, commercial and industrial PV systems, maximizing the self-consumption rate of solar energy and increasing energy independence.

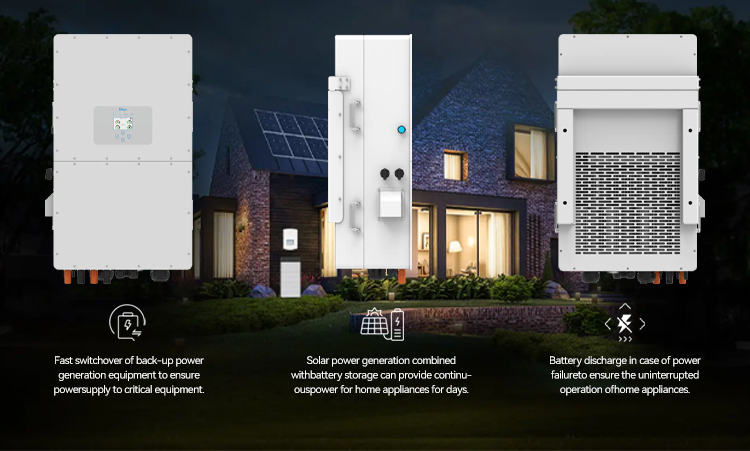

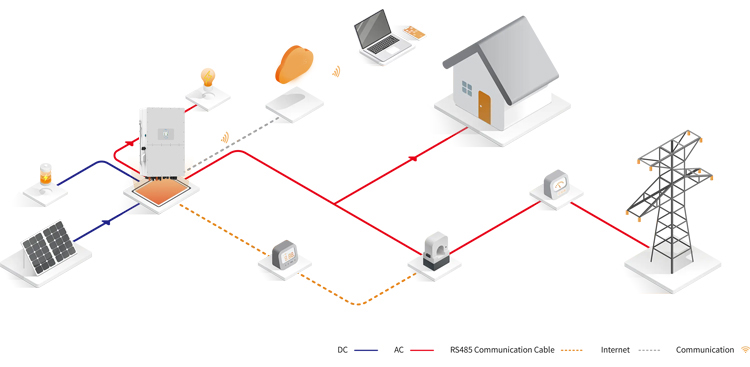

During the day, the PV system generates electricity, which is initially supplied to the loads. Then, the excess energy will charge the battery. Finally, the stored energy can be released when the loads need it.
The battery can also be charged by a diesel generator to ensure uninterrupted power supply in the event of a grid blackout.
With the intelligent monitoring platform, Deye SUN-50K-SG01HP3-EU-BM4 inverters support immediate remote shutdown in the event of an accident.
With the intelligent monitoring platform, Deye full series inverter products support immediate remote shutdown in the event of an accident. Remote parameter setting and FW upgrade simplify the O&M of the PV system.
